Vassberg's NACA 0012 Grids

Description

Contour plot of grid convergence trend for pressure.

Mach	0.80
α	0.125
Fine NC	512
Fine NC²	262,144
Inner B.C.	Momentum (Rizzi)
Outer B.C.	Characteristic (Homentropic)
2nd Order Dis.	1.0
4th Order Dis.	0.4

Close Up

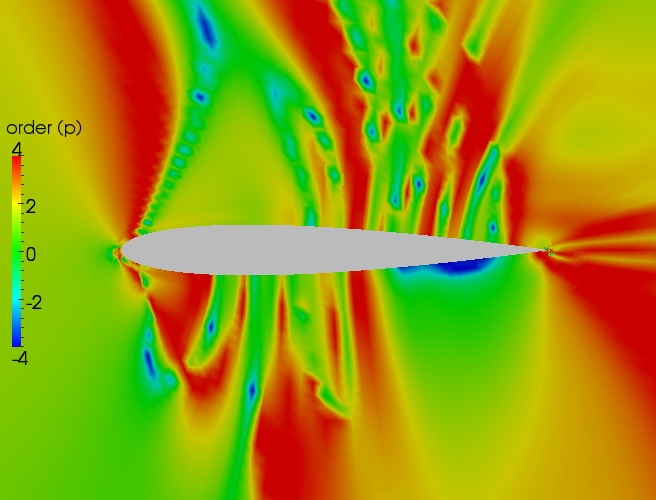

Close up order contour plot
Convergence Order

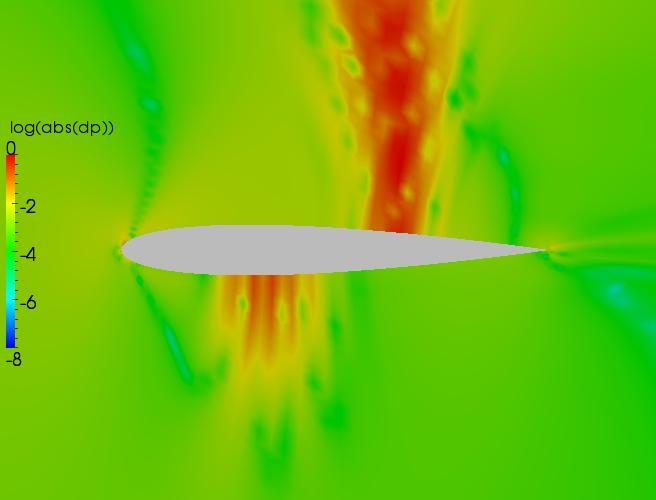

Close up delta contour plot
Convergence Delta

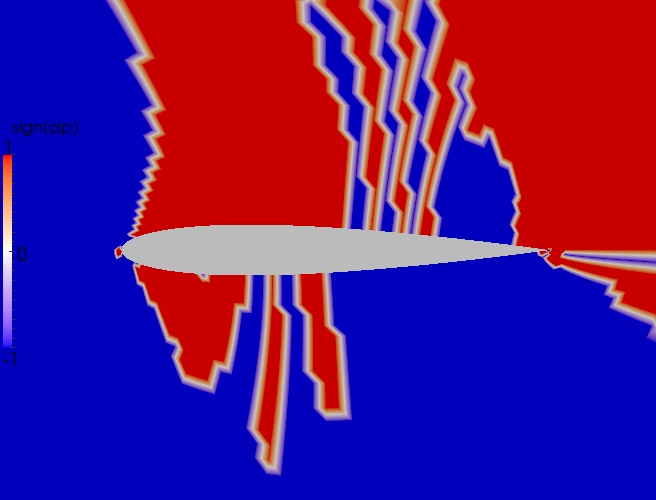

Close up direction contour plot
Convergence Direction

Full

Full order contour plot
Convergence Order

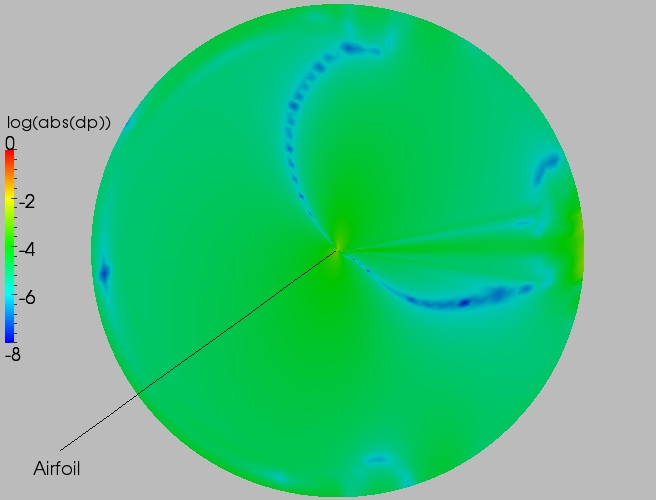

Full delta contour plot
Convergence Delta

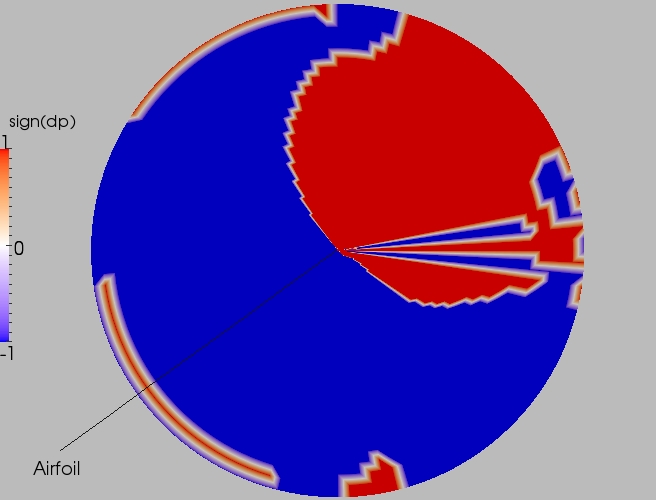

Full direction contour plot
Convergence Direction
